SPC Click System Floor |
|
|
Category |
SPC Flooring |
|
Type |
Sheet |
|
Color |
Wood design |
|
Size |
6"x48",7"x48" ,9"x48",9"x60",12"x24"......etc |
|
Thickness |
3.5mm-6.5mm |
|
Wear layer |
0.2mm-0.5mm |
|
Package |
Palletized |
|
Fire-proof level |
Bf1 |
|
Application |
Office, store, home improvement, showroom, etc. |
|
Install |
Click lock |
A floor with outstanding performance advantages,
It has outstanding performance advantages in fire and moisture proof, waterproof and anti-skid, installation, etc.
The clear wood grain texture is reproduced realistically through professional technology,
The overall paving effect is beautiful,
Compared with ordinary ground decoration materials,
SPC click floor is also a floor suitable for DIY,
to a certain degree,
Provide customers with greater design space,
HAODIBAN brand has its own floor factory, laboratory, etc.,
Committed to the research and development, production and sales of high-quality flooring,
As SPC click flooring suppliers,
The minimum order quantity for this SPC floor stock design and color is: 500 square meters.
SPC Click System Floor Structure
UV Layer -
Wear Layer - Decides SPC floor service lifethickness can be 0.1-0.5mm,the thicker the more durable.
Printing Layer - Realistic, 3D visuals that can resemble woodstone carpet.
Rigid SPC Core Layer - A high density, yet stable waterproof center that provides rigidity and stability to the SPC floor.
Base Layer (Optional) - EVA/IXPE/CORKSound Reduction
|
SPC FLOORING TECHNICAL SPECIFICATION |
||
|
Specification |
Standard |
SPC Flooring |
|
Thickness |
EN428 |
3.5-6.0mm(Click Lock) |
|
Wear Layer |
EN428/ENISO24340 |
0.2/0.3/0.5mm |
|
Wear resistant |
EN660-2/ASTM 3389 |
T,Wear Index: 0.128 |
|
Squareness |
EN427 |
≤0.25mm |
|
Straightness |
EN427 |
≤0.25mm |
|
Gap Between |
EN427 |
≦0.15mm |
|
Dimensional Stability |
EN434/ASTM F 2199 |
≤0.1% |
|
≤0.013in/ft |
||
|
Curling |
EN434 |
≤1.0m(80℃,6h) |
|
Peeling Strength |
EN431 |
≧5.3kgf/5cm |
|
Click tension Strength |
/ |
≥150kgf/5cm |
|
Residual Indentation |
EN 433/ASTM F1914 |
≤0.05mm,<5% |
|
Resistance To Heat |
ASTM F1514 |
E=0.19 |
|
Light Fastness |
EN ISO 105-B02/ASTM F-15115 |
≥6,E=0.73 |
|
Reaction To Fire |
EN 13501-1/ASTM E-648-06 |
Bfi-S1 |
|
Slip Resistance |
EN 13893/DIN 51130/ASTM C-1028 |
R9,Dry: 0.8 Wet: 0.7 |
|
Castor Chair Suitability |
EN425/NALFA/ANSILF-11 |
Pass, No visible damage after 35000 revolution |
|
Underfloor Heating |
/ |
Suitable max 27℃ |
|
Sound Reduction |
EN140-8 |
5db |
|
Resistance to staining |
ISO 26987:2008 |
Achieve Class0-no chage |
☑Easy to install
During the paving process of SPC click floor, the click floor can be completely nail-free, glue-free, and keel-free, and can be directly laid on the ground. The pavement adopts click splicing, glue-free installation, and tight seams.
☑Raw materials are 100% environmentally friendly
The main raw material of SPC click floor is polyvinyl chloride, which does not contain any radioactive elements, is green and environmentally friendly, and is 100% free of formaldehyde, lead, benzene, heavy metals and carcinogens, soluble volatiles, and radiation.
☑Antibacterial and antifungal
The floor surface has undergone special antibacterial and antifouling treatment, which can inhibit the ability of bacteria to reproduce, and has a strong ability to kill most bacteria.
☑Super anti-skid
The wear-resistant layer on the surface of the SPC click floor has special anti-skid properties, and the foot feels more astringent when it is wet, and it is not easy to slip, that is, the more it meets the water, the more astringent it becomes.
☑Recyclable
The SPC click floor is easy to install, so it is easy to remove, and there is no harm to the original ground and the SPC click floor, and it can be recycled.
☑Fire retardant
The SPC click floor fire protection index can reach B1 level, the fire resistance performance is very good, the flame retardant effect is excellent, it will automatically extinguish within 5 seconds after leaving the flame, and will not produce suffocating poisonous and harmful gases.
☑Waterproof
Since the main component of SPC click floor is vinyl resin, which has no affinity with water, it is not afraid of water. As long as it is not soaked for a long time, it will not be damaged and will not be mildewed due to high humidity.

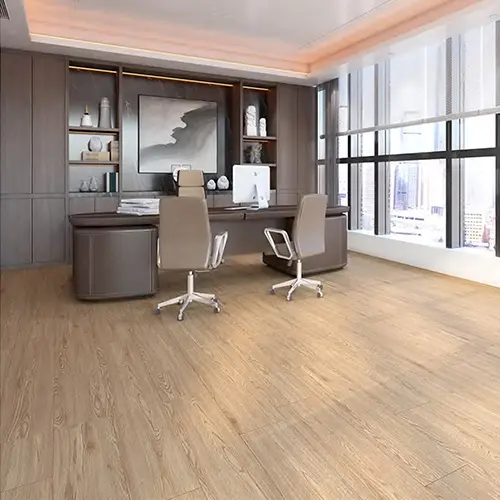

Application Scenario
SPC click floor has outstanding performance advantages and is suitable for many different scenarios, such as: offices, shops, home decoration, exhibition halls, etc.

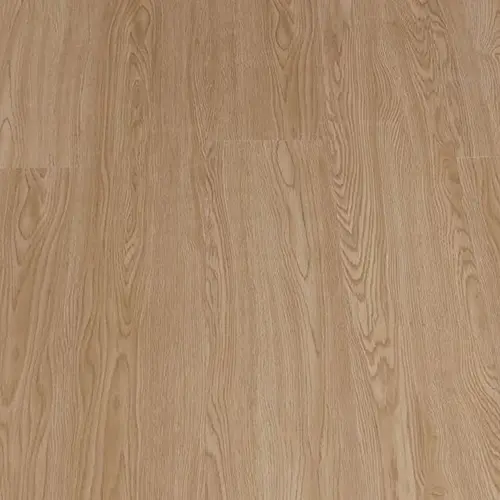

Visually similar to wood grain floors
Clear wood grain texture, a variety of colors for customers to choose from, the overall paving effect is similar to that of wooden floor, but it has more performance advantages than wooden floor.
