HAODIBAN SPC Flooring Product Overview
|

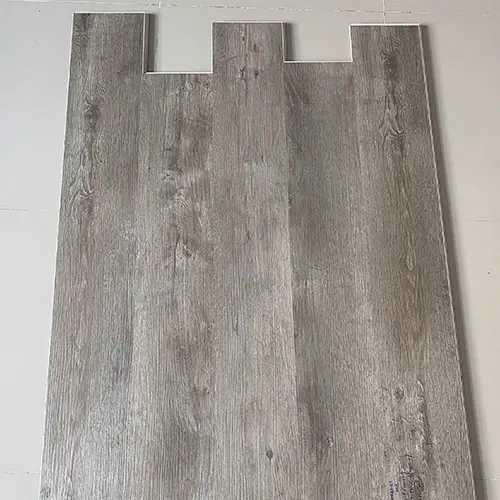

SPC floor with IXPE silent pad |
|
|
Category |
|
|
Type |
Sheet |
|
Color |

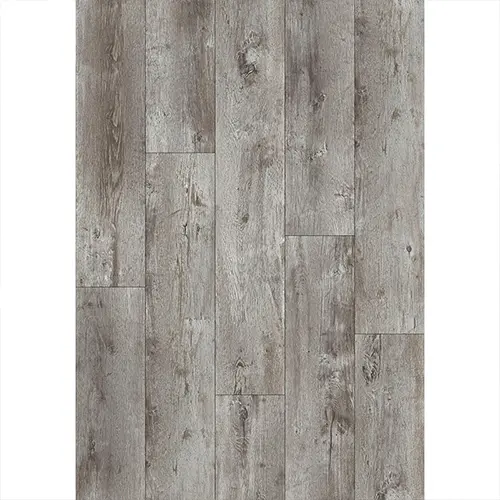

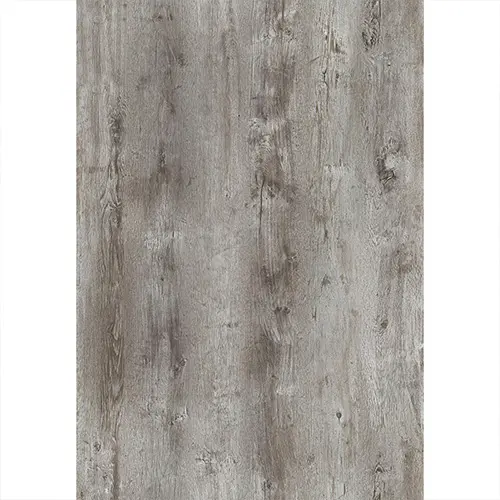

Wood design |
|
Size |
180*1220mm |
|
Thickness |
6.0mm,5.0mm,4.0mm |
|
Wear layer |
0.3mm,0.4mm,0.5mm |
|
Mute pad |
IXPE 1.5mm |
|
Package |
Palletized |
|
Fire-proof level |
Bf1 |
|

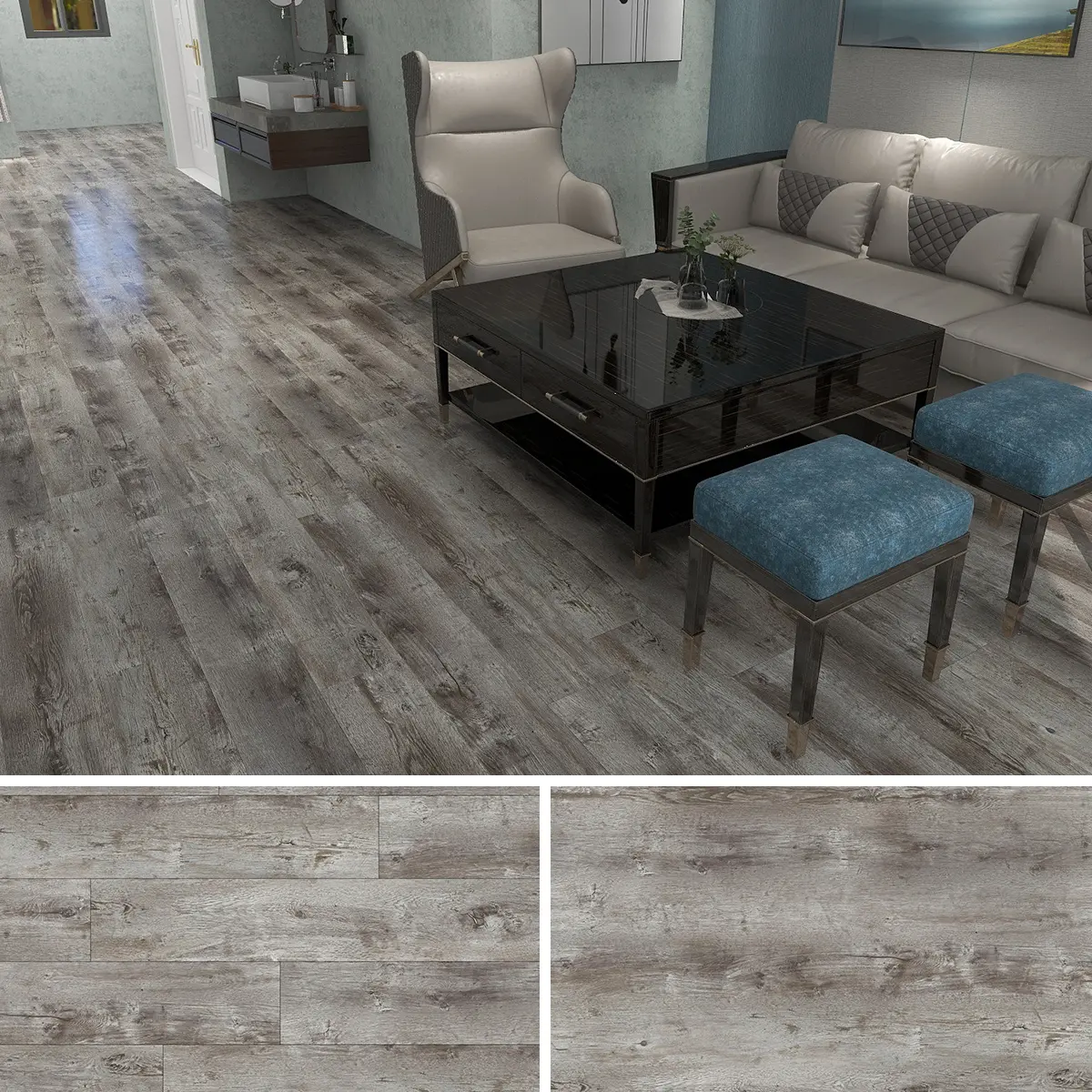

Application |
Office, home improvement, retail, hotel, education, etc. |

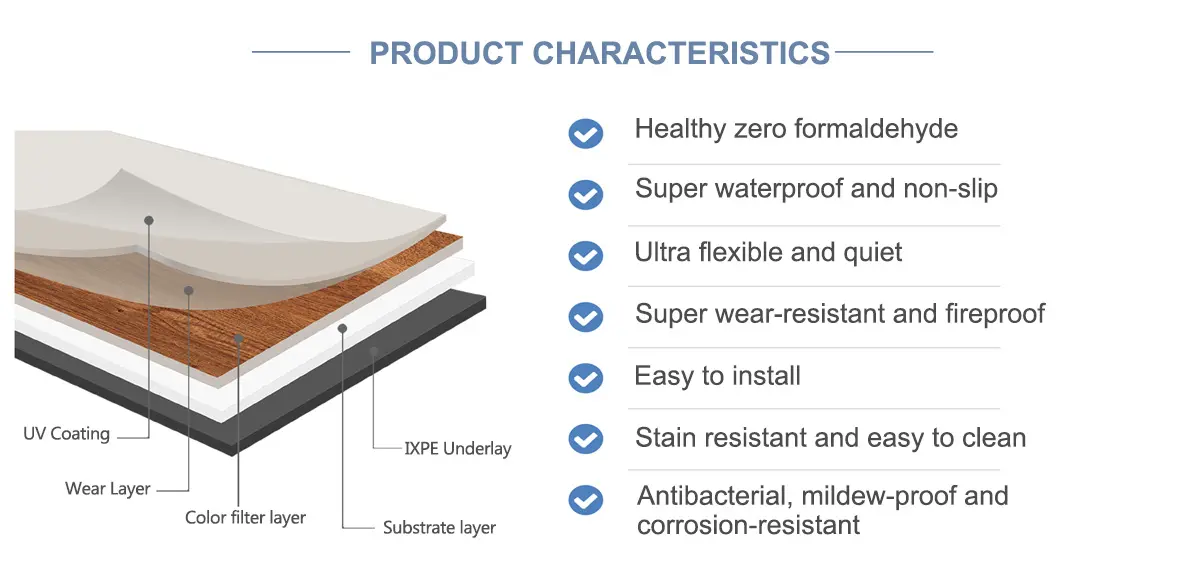

❶ The product comes standard with an IXPE sound-absorbing bottom to help block sound from traveling through the air and structure.
❷ Join the APC layer, the mute is good, and the foot feel is excellent.
❸ High-density surface layer, tightly assembled, waterproof and non-slip.
❹ The laboratory develops a high-purity wear-resistant layer with good wear-resistant and anti-fouling performance.
❺ The installation is simple, the construction is fast, and the installation cost and time are saved.
❻ Multi-layer high temperature lamination, high density, high hardness.
❼ Solve the problem of oor stability of traditional sheets.

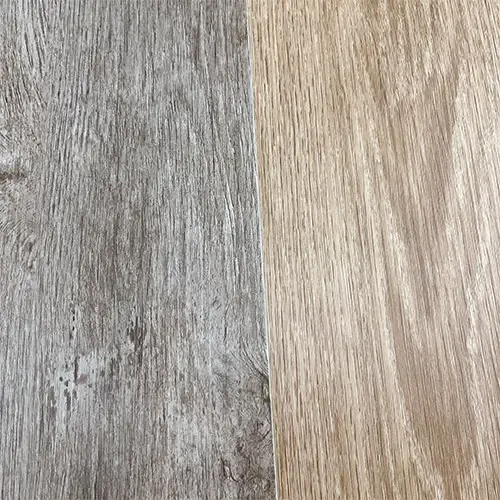

❽ The texture does not rebound, the three-dimensional sense is stronger, and the shrinkage is more stable.
❾ 100% new green formula, zero formaldehyde, no harmful substances. The collection does not contain any plasticizer ingredients and does not use DOP. After 28 days, the VOC (TVOC) emission is less than 10ug/m³, and the brand has passed the REACH174 high-risk substance test.
|
SPC FLOORING PRODUCT SPECIFICATIONS |
|||
|
Test items |
Test method |
Required |
Test result |
|
Shape |
|||
|
Fracture |
GB/T 34440-2017 |
None |
Nothing |
|
Layered, stripping |
None |
Nothing |
|
|
Surface layer of white lace |
None |
Nothing |
|
|
Impurities |
No more than one defect with a visual distance of 60cm and a diameter of 1mm |
Nothing |
|
|
Dimensional characteristics and deviations |
|||
|
Size accuracy |
ISO24341 |
Length ±0.50mm Width±0.10mm |
L:1220.15 W:180.03 |
|
Thickness accuracy |
ISO24346 |
±0.13mm |
4.02mm |
|
Right angle |
ISO12342 |
≤0.25mm |
0.10mm |
|
Straight line |
≤0.25mm |
0.12mm |
|
|
Height difference |
≤0.10mm |
0.07mm |
|
|
Stitching accuracy |
≤0.10mm |
0.06mm |
|
|
Physical performance |
|||
|
80℃/6H Shrinkage |
ISO23999 |
≤0.10% |
0.03% -0.01% |
|
High temperature warpage 80℃/6H |
≤1mm |
0.15mm |
|
|
lustrousness |
Gloss meter |
According to the order |
6.2GU |
|

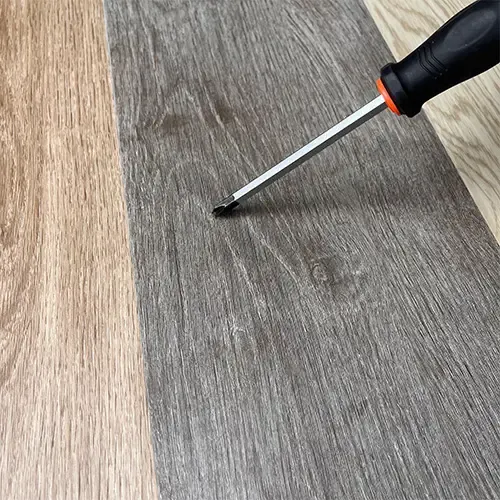

Scratch resistance |
ISO 1518 |
≥2500g |
2600g |
|
Wear amount |
ASTM D4060 |
≤0.015g/1000r(CS-17) |
0.009g/1000r |
|
Fit degree |
ISO24345 |
≥65N/50mm |
85.23N/50mm |
|
Buckle tension |
ISO24334 |
≥120N/50mm |
322.15N/50mm |
|
Proportion |
ISO23996 |
1900-2100kg/Cubic meters |
2098 |
|
Impact resistant |
EN13329 |
big ball≥1600mm,small ball≥20N |
1750 |
|
Fouling resistance |
GB18102 |
Non-pollution,Non-corrosion |
Non-pollution,non-corrosion |

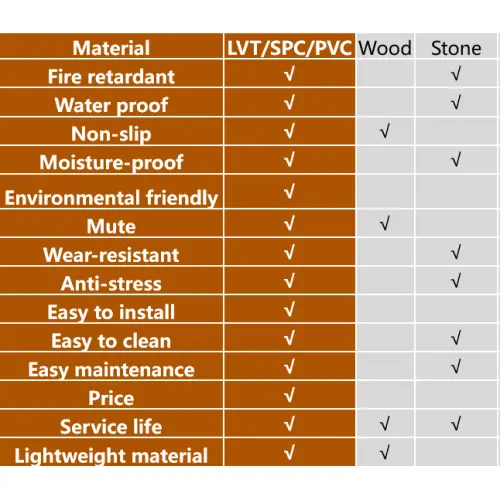

BENEFIT ANALYSIS
◆Cost saving: material costs and installation costs are lower than traditional flooring, greatly reducing costs.
Save labor: One worker can construct about 100 square meters per day.
◆Shorten the construction period: The installation is simple, and under the premise of saving labor, the construction period is shortened synchronously, saving 20%-30% of the time.
◆Reduce customer complaints and after-sales problems: Due to the strong material stability, the owners are not prone to problems such as warping and deformation during use, reducing customer complaints and maintenance problems.
◆Increase the clear height of the space: the ultra-thin feature increases the sense of indoor space.
◆Ensuring the safety of the owners: the fire-retardant and more "astringent" characteristics of the board come with water to ensure the safety of the owners at home to the greatest extent.
The advantages of Enoch SPC lock floor and product introduction
❶ Healthy zero formaldehyde
It is made of zero formaldehyde materials, and the paving adopts self-leveling. From the product to the pavement, the whole process is 0 formaldehyde, and the E1 level is environmentally friendly.
❷ Super waterproof and non-slip
Soaking in water does not deform and does not foam, the surface layer has more friction in contact with water, the elderly and children are not easy to fall, and the safety is guaranteed.
❸ Ultra flexible and quiet
The innovative flexible rebound technology makes the floor elastic, the foot feels soft and comfortable, and the sound absorption effect is remarkable.
❹ Super wear-resistant and fireproof
The wear resistance is twice that of laminate flooring, the wear resistance level is as high as 10,000 revolutions or more, and the fire resistance level is as high as Bf1.
❺ Easy to install
Using Swedish Valinge patented locking technology, the paving is fast, accurate and stable, no glue is required, and it is as simple as building blocks.

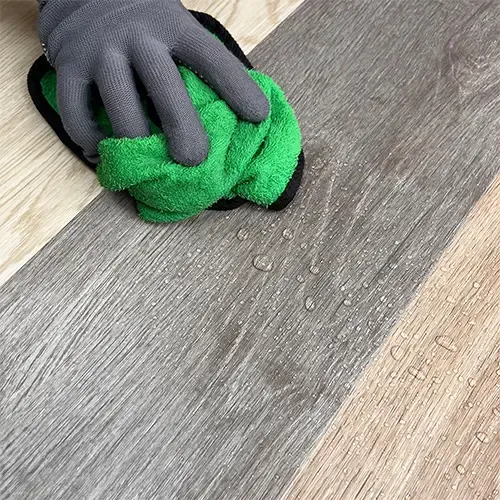

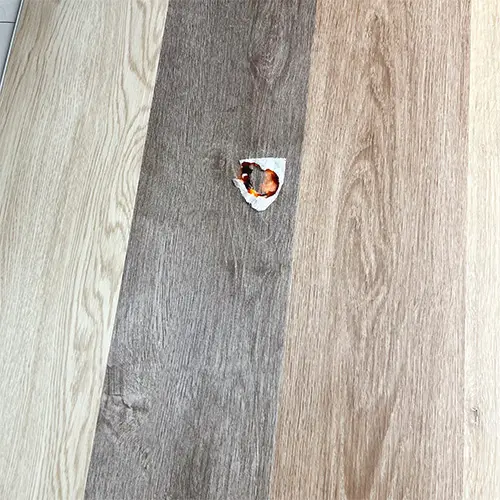

❻ Stain resistant and easy to clean
The SPC floor is easy to clean, and it can be wiped clean with a wet mop and a rag.
❼ Antibacterial, mildew-proof and corrosion-resistant
UV antibacterial, anti-mildew, anti-moth-eaten, acid and alkali corrosion resistance.

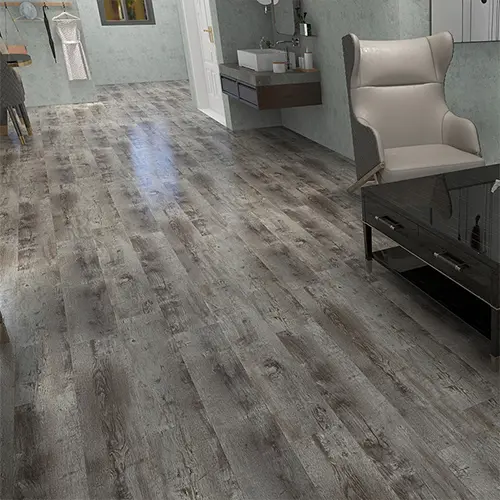

The gentle and elegant small and fresh, combined with the elegant and atmospheric natural color system, the product is suitable for office, retail, hotel, education, home improvement, school, shopping mall, expo and other different spaces.
